Tile Testing Instruments

PAGE  Milestone Instruments  -  Milestone Instruments

Milestone Instruments
Tile Abrasion Testing

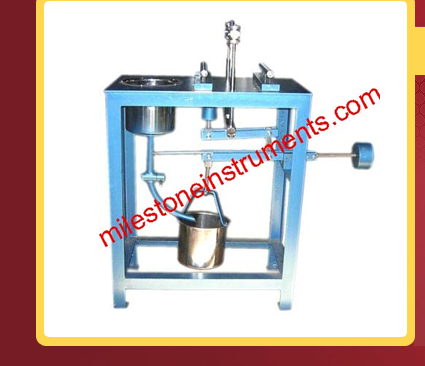

Tile Abrasion Testing Machine:-
The tile sample is pressed under a specified load against a grinding path, strewn evenly with an abrasive powder, revolving at the rate of 30 ± 1 rpm. At the end of 100 revolutions of the disc, the second parallel side of the tile is subjected to wear for an equal number of revolutions of the disc. The wear of the tile is measured using thickness-measuring device (which is supplied at extra cost). The abrasion-testing machine consists of a replaceable grinding path, fitted on to a disc rotating about its vertical axis. The rotating disc and the grinding path are enclosed by a circular tray. A bracket holds the specimen. The loading is by a counter-balanced lever. A funnel is provided to facilitate charging the grinding path with abrasive powder. Supplied complete with automatic preset revolution counter and one 7.5 kg weight, but without abrasive powder and thickness measuring device. To work on 220V, 50 Hz, 1 phase, AC Supply.
Optional Extra
Thickness Measuring Device, with Dial Gauge, having 25 mm travel and 0.01 mm least count
Meets:- IS: 1237, IS: 1706
